Nodal Analysis
1. Unveiling the Mystery
Ever felt like you're staring at a circuit diagram that looks more like a tangled plate of spaghetti than something you can actually understand? Nodal analysis is like untangling that spaghetti, one strand at a time! It's a powerful technique used to determine the voltages at various points (nodes) within an electrical circuit. Think of it as finding the "electrical height" at different locations in your circuit landscape.
But why bother with all this node-hunting? Well, knowing the node voltages is super useful! From there, you can easily calculate currents flowing through different components and figure out power dissipation. Basically, it unlocks a treasure trove of information about your circuit's behavior. Imagine being able to predict exactly how your circuit will perform before you even build it that's the power of nodal analysis!
Now, circuits can get complicated real fast. Trying to solve them using basic Ohm's Law and Kirchhoff's Laws directly can turn into a mathematical nightmare. Nodal analysis offers a more systematic approach, especially for circuits with many parallel branches. It helps you organize your thoughts and avoid getting lost in a maze of equations. Its all about methodically applying a core principle to simplify things.
Ultimately, nodal analysis aims to reduce a complex circuit into a set of solvable equations. These equations relate the unknown node voltages to the known voltage and current sources in the circuit. Once you solve for the node voltages, you're golden! You've effectively cracked the code of your circuit.
2. The KCL Connection
Here's the big reveal: Nodal analysis is fundamentally based on Kirchhoff's Current Law (KCL). KCL states that the algebraic sum of currents entering and leaving a node must equal zero. In simpler terms, what goes in must come out! Think of it like a water pipe junction the amount of water flowing into the junction must equal the amount of water flowing out.
In nodal analysis, we strategically choose a reference node (often called ground) and then apply KCL at each of the other nodes in the circuit. We express the currents flowing through the branches connected to each node in terms of the node voltages and the component values (resistances, capacitances, etc.). This is where Ohm's Law comes into play, as it relates voltage and current through a resistor.

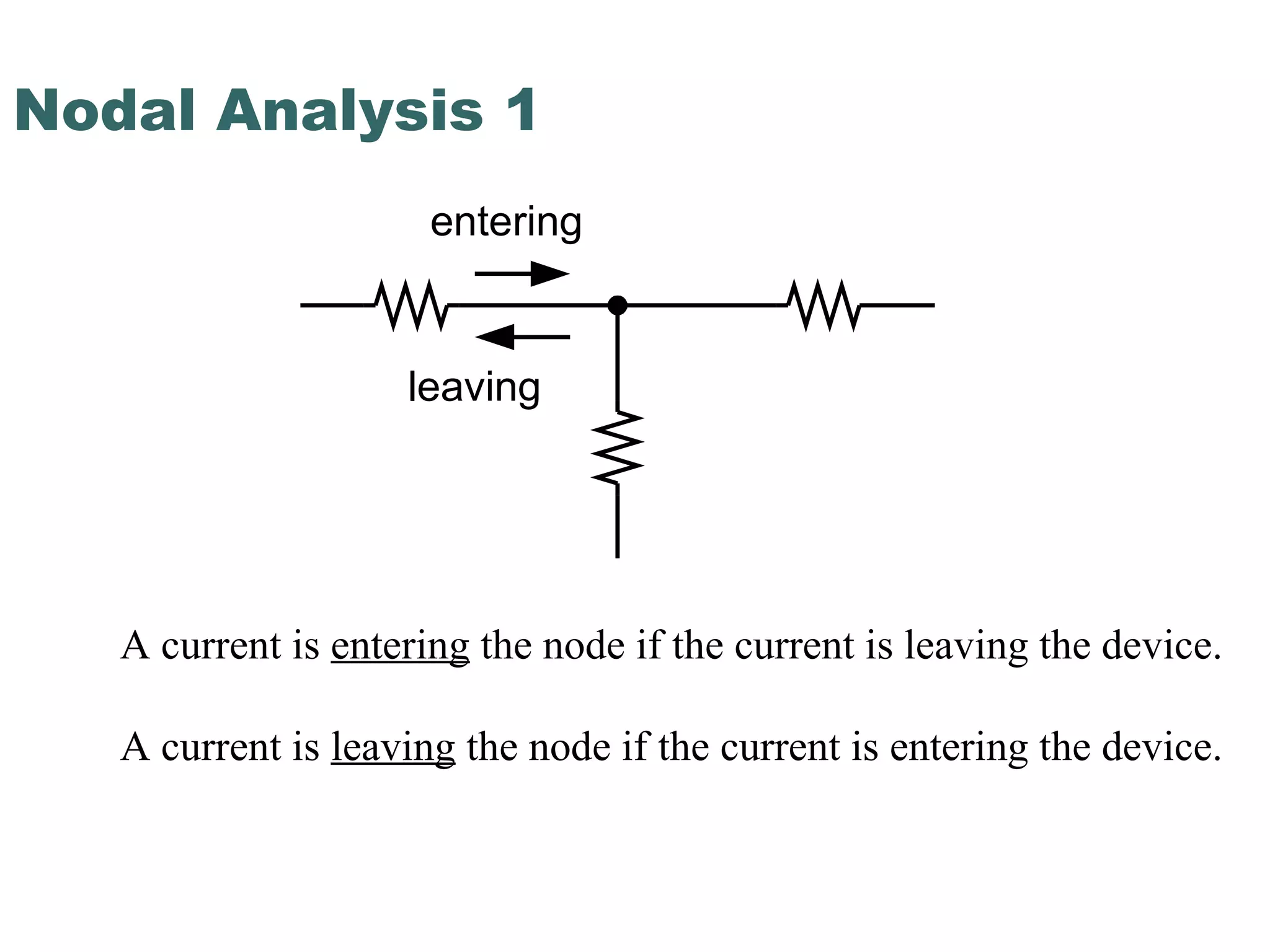

So, you're essentially writing equations that express the current flowing away from each node. By convention, we often assume that all currents are flowing out of the node. If a current is actually flowing into the node, it will simply show up as a negative value when you solve the equations. Don't worry, it's just a sign convention the math takes care of it!
Think of it like balancing a checkbook. All the deposits (currents flowing in) must equal all the withdrawals (currents flowing out). If your checkbook doesn't balance, you know there's an error somewhere. Similarly, if your KCL equations don't hold true, you've probably made a mistake in your analysis. Double-checking is always a good idea!
3. KVL's Role
While nodal analysis leans heavily on KCL, Kirchhoff's Voltage Law (KVL) isn't entirely absent. KVL states that the algebraic sum of voltages around any closed loop in a circuit must equal zero. While KVL is a fundamental law of circuit analysis, its not the direct foundation upon which nodal analysis is built. Instead, KVL principles are often implicitly used when expressing branch currents in terms of node voltages. It is sort of "behind the scenes".
For instance, when you're expressing the current flowing through a resistor connected between two nodes, you're using the voltage difference between those nodes. That voltage difference is essentially a consequence of KVL. You're indirectly applying KVL to determine the voltage drop across the resistor.
Imagine constructing a building; KCL is like the foundation and framing while KVL is like ensuring all the pipes are properly connected, ensuring the water flows correctly (analogous to current flow). Both are vital, but one (KCL) is the explicit methodology and the other (KVL) is an implicit, necessary principle.
So, think of KVL as more of a supporting actor in the nodal analysis drama. It's there, playing a crucial role behind the scenes, but KCL takes center stage. KCL sets the framework, and KVL helps fill in the details.
4. Simplified Steps to Master Nodal Analysis
Okay, let's break down the nodal analysis process into some manageable steps:
-
Identify the Nodes: Label all the nodes in your circuit. Remember, a node is a point where two or more circuit elements connect.
-
Choose a Reference Node (Ground): Pick one node to be your reference node (ground). This is usually the node with the most connections, as it simplifies the equations.
-
Label the Remaining Nodes: Assign voltage variables (e.g., V1, V2, V3) to the remaining nodes. These are the unknowns you're trying to solve for.
-

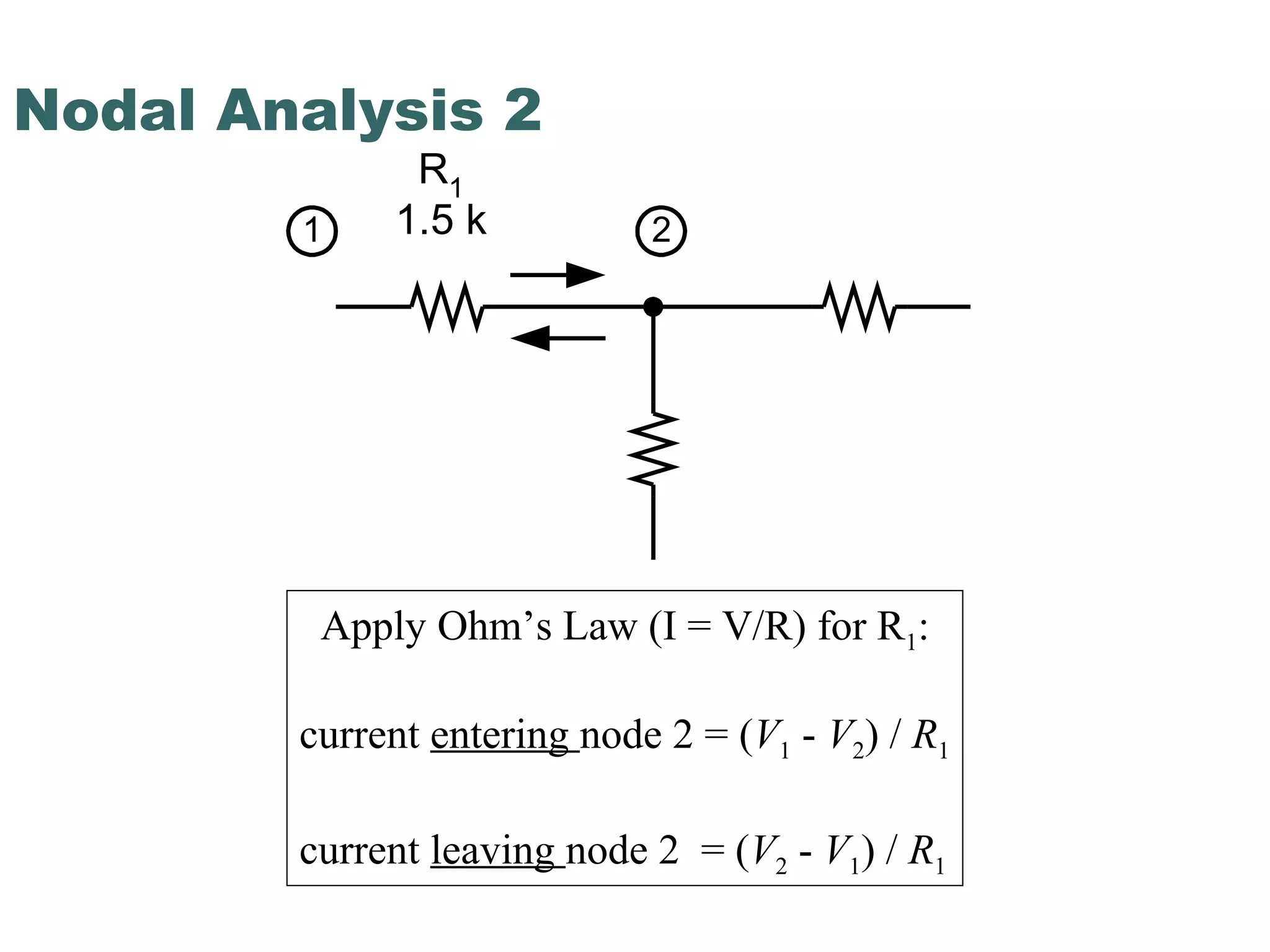

Apply KCL at Each Node: Write KCL equations for each node, expressing the currents flowing out of the node in terms of the node voltages and component values. Remember to use Ohm's Law (V = IR) to relate voltage and current through resistors.
-
Solve the Equations: You'll end up with a system of linear equations. Solve this system to find the node voltages. You can use various methods, such as substitution, matrix algebra, or even online solvers.
-
Calculate Branch Currents (if needed): Once you know the node voltages, you can easily calculate the currents flowing through any branch of the circuit using Ohm's Law.
Practice makes perfect! The more you work through nodal analysis problems, the more comfortable you'll become with the process. Don't be afraid to make mistakes that's how you learn!
5. Nodal Analysis vs. Mesh Analysis
Nodal analysis has a counterpart called mesh analysis. While nodal analysis focuses on node voltages and KCL, mesh analysis focuses on loop currents and KVL. Both methods can be used to solve any circuit, but one method might be more convenient than the other, depending on the circuit's topology. In simpler term, its just depends on the situation that you have.
Generally, nodal analysis is preferred for circuits with many nodes connected in parallel, while mesh analysis is preferred for circuits with many meshes (loops) connected in series. Think of it this way: if your circuit looks like a bunch of ladders stacked next to each other, nodal analysis is probably the way to go. If it looks like a series of rings linked together, mesh analysis might be a better choice. But again, both methods will work!
One key difference is the unknowns you're solving for. Nodal analysis solves for node voltages, while mesh analysis solves for loop currents. Once you have either the node voltages or the loop currents, you can calculate other circuit parameters using Ohm's Law and Kirchhoff's Laws.
Ultimately, the choice between nodal and mesh analysis comes down to personal preference and the specific characteristics of the circuit. The important thing is to understand both methods and be able to apply them effectively.
